Handling Unit between S4HANA and EWM

Material + Packaging Material is called Handling Unit

S/HANA(ERP) Config

Step 1.	Define Packaging Material Type
IMG	Logistics General-Handling Unit Management-Basics-Define Packaging Material Types for Shipping

Step 2.	Define Packaging Material Group
IMG	Logistics General-Handling Unit Management-Basics-Define Material Group for Packaging Materials

Step 3.	Assign allowed Packaging Material Types per Material Group Pack
IMG	Logistics General-Handling Unit Management-Basics-Define Allowed Packaging Materials

Step 4.	Define Number Range
IMG	Logistics General-Handling Unit Management-External Identification-Number Range Maintenance for HU Identification

Step 4.1.

Assign Number Range to Pack Mat Type

S/HANA(EWM) Config

Step 5.	Define Packaging Material Types for Warehousing
IMG	SCM Extended Warehouse Management- EWM-Cross Process Settings-Handling Units-Basics-Define Packaging Material Types for Warehousing

The packaging material type groups packaging materials and contains the main control characteristics that are valid for the relevant packaging material.

Step 6.	Maintain Allowed Packaging Material Types for Packing Group
IMG	SCM Extended Warehouse Management- EWM-Cross Process Settings-Handling Units-Basics-Maintain Allowed Packaging Material Types for Packaging Group

When packing materials or handling units, the system checks whether the packaging material type of the packaging material is permitted as packaging for the packing group of the material.

Step 7.	Define Number Range for HU Identification
IMG	SCM Extended Warehouse Management- EWM-Cross Process Settings-Handling Units-External Identification-Define Number Range for HU Identification

Maintain the number range intervals for the HU identification and indicate whether the interval is an internal or an external number range.

Step 7.1.	Assign Number Range Intervals to Packaging Material Types
IMG	SCM Extended Warehouse Management- EWM-Cross Process Settings-Handling Units-External Identification-Assign Number Range Intervals to Packaging Material Types

For each warehouse number, assign relevant intervals that you have previously defined (Step 8) to the packaging material types that are numbered by means of the number range interval.

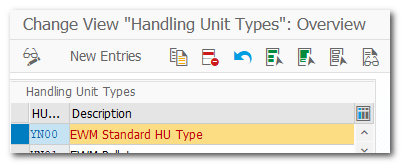

Step 8.	Define Handling Unit Types
IMG	SCM Extended Warehouse Management- EWM-Cross Process Settings-Handling Units-Basics-Define HU Types

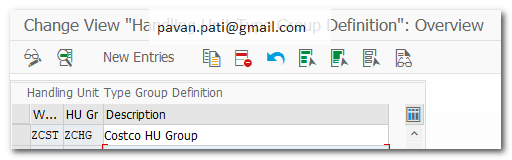

Step 8.1.	Define HU type groups
IMG	SCM Extended Warehouse Management- EWM-Cross Process Settings-Handling Units-Basics-Define HU Type Groups

Use HU type groups to group together similar HU types.

Step 9.	Define HU Types for Each Warehouse Number and Assign HU Type Group
IMG	SCM Extended Warehouse Management- EWM-Cross Process Settings-Handling Units-Basics-Define HU Types for Each Warehouse Number and Assign HU Type Group

Specify which of the generally available handling unit types (HU types) you want to use or permit in your warehouse.

Step 10.	Master Data Maintenance
MM01 /SCWM/MAT1	Maintain below field value in Basic Data1 Created packaging material 3970 for Plant ZCST Created Second Packaging Material 3972(HU) Material Group: Packaging Materials (ZCPG)

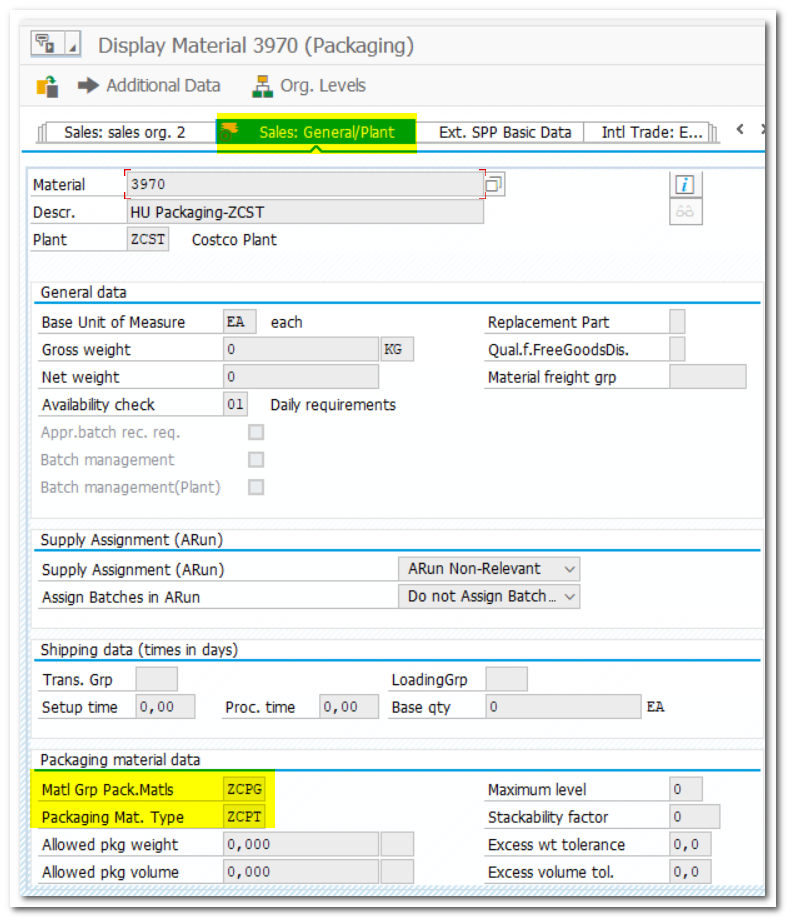

Maintain below 2 field values in Sales: General/Plant tab

• Material Group: Packaging Materials (ZCPG)
• Packaging Material Type (ZCPT)

Maintain below field value in WM packaging

• Handling Unit Type (YN00)

Save Material in MM01

Created Product 3970 and 3972 in /SCWM/MAT1

Step 11.	Test Handling Unit Scenario
	Creased Purchase Order with Material #3970 (PO#4500100213) Created Inbound Delivery for PO #4500100213 Inbound Delivery #180000708 (HU in ERP)

HU in EWM

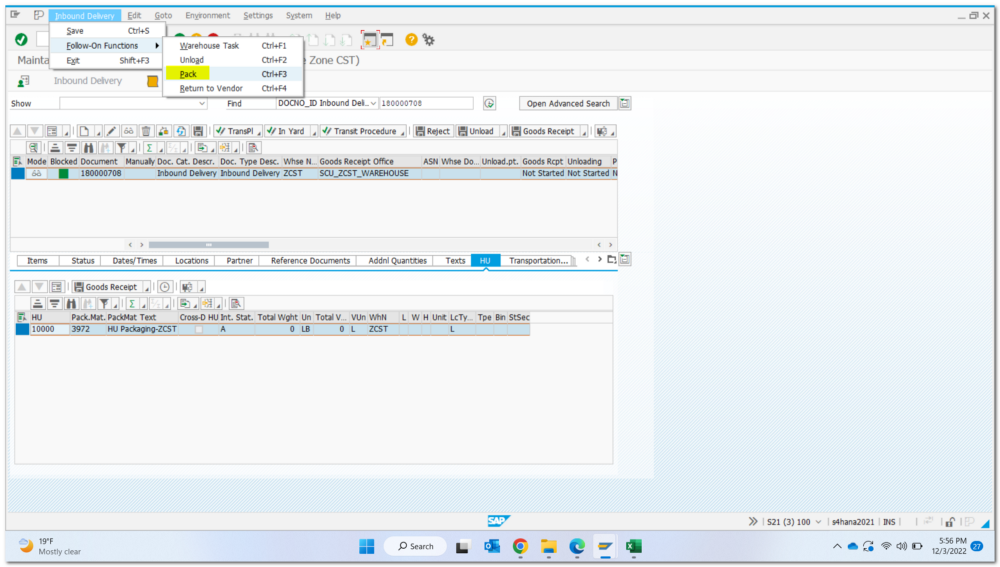

/SCWM/PRDI

• Enter HU material and Execute
• Move material from ERP HU to EWM HU to repack
• Save

Handling unit details under HU tab.

Number Range between S/4HANA (ERP) and S/4HANA (EWM)

Summary: Steps between S/4HANA(ERP) and S/4HANA(EWM)

S/4HANA (ERP)	S/4HANA (EWM)
Packaging Material Type (ZCPT)	Packaging Material Type (ZCPT)
Packaging Material Group (ZCPG)	Packaging Material Group (ZCPG)
Number range HU in S4HANA (NR->ZCPT) Example Int 0001-9999	Number range HU EWM (NR->ZCPT) Example Int 10000-99999
Assign packaging material types to material groups (ZCPG -> ZCPT)	Maintain Allowed Packaging Material Types for Packing Group (ZCPG -> ZCPT)
	HU TYPE (YN00) HR TYPE Group (YN00->ZCHG)
